The Kite75 is a ground-breaking professional drone that offers exceptional performance, compactness, modularity and customization, along with a range of outstanding features. It comes equipped with various equipment packages, making it suitable for a wide range of applications in industries, trade and infrastructure. The Kite75 is more reliable and durable than other professional and industrial drones, making it a top choice in terms of performance and versatility.
The Kite75 is the ultimate fusion of performance and versatility.
The Kite 75 comes with a factory-fitted tether system, which allows for seamless switching between tether and battery operation without any need for tools. It can be easily and efficiently adjusted to suit the mission requirements, ensuring maximum versatility and operational flexibility. This flexible adaptability provides greater operational freedom.
Our Kite 75 is much more than just an unmanned aerial drone.
![[Translate to English:] ADS-B support ADS-B für Drohnen](/fileadmin/_processed_/7/1/csm_adsb_supported_28d4c526f9.png "ADS-B support ADS-B für Drohnen")

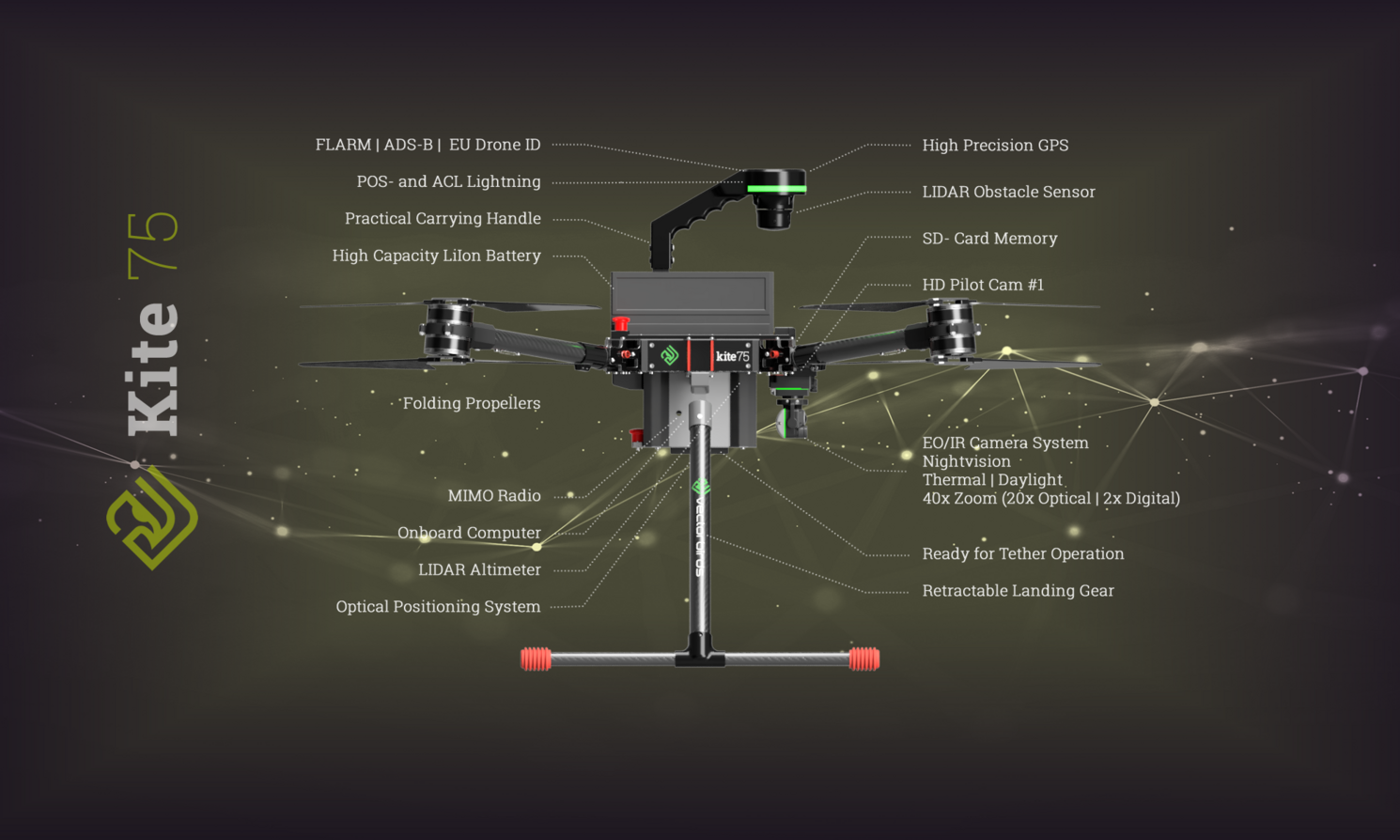

Kite 75: Modular design for maximum flexibility
In addition to the normal cold start mode, which only takes around 1 to 2 minutes for the Kite 75 under normal circumstances, the Kite 75 offers a standby mode that allows the user to put the Kite 75 into standby mode some time before an operation without having to connect a drive battery.
This means that the Kite 75 can be safely put on standby in the emergency vehicle or a protected location. When the mission command is given, the Kite 75 is ready for take-off in less than 10 seconds from standby mode.
To decouple the IMU of the flight controller from fluctuating outside temperatures, it is heated up to 50°C after initialization. This usually happens completely unnoticed and within a minute. In very cold outside temperatures, this heating process can take a little longer and unintentionally extend the start time. The IMU of the Kite 75 is already heated up in standby mode. In this way, the Kite 75 is ready for take-off immediately after connecting the flight battery from standby mode.
In addition to the standard payload, the Kite 75 offers the option of adding a sophisticated EO/IR zoom camera gimbal with night vision. This optional camera unit, attached to the front of the Kite 75 and detachable, acts as an intelligent FPV zoom camera with multiple functions, including
- automatic tracking,
- object tracking,
- geolocation,
- fire and smoke detection,
- detection of people in the water
- license plate recognition.
At the same time, the payload adapter on the underside of the Kite 75 enables the flexible attachment of a wide range of other payloads, such as
- additional camera gimbals,
- a variety of sensors
- or the transportation of a wide range of goods
Experience long flight times and ultimate performance with the Kite 75. State-of-the-art LiIon battery technology sets new standards and enables flight times of 40+ minutes*. Discover the future of drone technology - reliable, powerful, and ready for any challenge!
* Measured with quadrocopter drive unit and dual gimbal with FLIR 640x480 and RGB camera with 20x optical zoom. The kite can also be operated with standard LiPo batteries.
The switchable innovative RGB LED lighting of the Kite 75 guarantees excellent visibility at dusk and at night.
Selectable sequences and a wide range of colors guarantee optimum visibility. The optional IR lighting enables invisible night-time use without revealing the position of the Kite 75. With a total of 7 lighting units, the Kite 75 sets new standards for safe and flexible flying.
The Kite 75 is optionally equipped with a LIDAR-based obstacle avoidance system that detects obstacles at an angle of 320° and thus prevents collisions. This ensures optimum safety for smooth mission operations.
The Kite 75 allows flight times of several hours with local use on the tether. With the option of simply switching to tether operation, it theoretically enables unlimited stationary missions without a stopover. Flight altitudes of up to 100m AGL are possible without any problems. Power is supplied via the cable. A buffer battery on the Kite 75 ensures operational reliability.
The bidirectional data transmission via Ethernet over the tether cable allows not only control, but also operation of the payload and video transmission - all without a radio link.
The Kite 75 is equipped with an advanced multi-band GNSS receiver that enables exceptional precision in spatial orientation. Compared to conventional GNSS systems, multi-band GNSS enables more accurate positioning through the simultaneous use of multiple frequency bands.
Optionally, the Kite 75 can be equipped with a second GNSS receiver to integrate high-precision heading via the GNSS signal.
With the telemetry status monitoring of the Kite 75, you always have an up-to-date overview of the most important UAV data. The color display of the GCS allows you to quickly read the telemetry data transmitted in real time. This includes flight duration, battery voltage, current, battery capacity drawn, remaining capacity indicator, flight altitude AGL and ASL, geocoordinates of the drone, number of satellites, quality of GNSS signals and much more.
Precise information for optimum control and monitoring during the entire flight.
The silent mode of the Kite 75 enables missions to be carried out without a radio link to the GCS. This function allows the Kite 75 to operate without communicating with the ground control station. Ideal for missions where inconspicuous and autonomous operation is crucial.
The Kite 75 not only impresses with its technology, but also with its well-thought-out design. The integrated handle makes it easy to transport to the place of use and allows the Kite 75 to be carried with just one hand. What may seem unimportant at first glance turns out to make handling easy at second glance.
A well-thought-out feature for more flexibility on every mission!
The Kite 75 autopilot meets the highest safety requirements and is equipped with a triple redundant IMU (Inertial Measurement Unit). Two of the IMUs are damped and heated, while one remains undamped as a reference. This ensures reliable and precise flight control under various conditions. With the modern ARM® Cortex® H7 processor, the autopilot is ideally equipped for future features.
Fly with confidence and maximum safety!
Specifications
Download Datasheet of Kite 75 QUAD Download Datasheet of Kite75 OCTO
We would be happy to demonstrate you our Kite 75. Please contact us!
Further advantages of the Kite 75 - for your benefit
Flight safety
The redundancy of the battery power supply and the sensors, which are important for the flight, additionally increases reliability thanks to high-quality components. Optional integration into air traffic is achieved by using active or passive ADSB or FLARM systems.
Data security
The Kite 75 guarantees maximum data security through encrypted data transmission and storage. This includes modern encryption protocols for the secure transmission of flight data and the encrypted storage of sensitive information. These integrated measures protect against unauthorized access and ensure the confidentiality of the data collected.
Sustainability/ecological footprint
The Kite 75 not only offers technological advantages, but also a sustainable solution with reduced costs and a small ecological footprint. Its durability and modular design contribute to a longer service life, making efficient use of resources. The modular structure also enables easy repairs and upgrades, reduces waste and promotes an environmentally friendly approach. These sustainable features position the Kite 75 as a cost-effective and environmentally conscious choice in the industrial drone sector.
Made in Germany
Vectorbirds Airborne Systems relies on a direct sales and service approach without detours via distributors and dealers. This direct connection to the manufacturer offers clear advantages: Customers receive faster and more accurate information, can respond better to individual requirements, benefit from faster response times for support requests and maintenance needs, and experience tighter control over product quality and standards. The direct sales channel also enables cost optimization, which translates into competitive pricing for the Kite 75. Overall, Vectorbirds Airborne Systems' direct sales and service enables a customer-centric, efficient and cost-effective experience for all who choose the Kite 75.
Kite 75: Innovative industrial drone for precision monitoring and inspections
The Kite 75, as a specialized industrial drone, impresses with its versatility for monitoring and inspection tasks. Its advanced multi-band GNSS receiver ensures precise spatial orientation. Flexible switching between tether and battery operation allows it to adapt efficiently to the requirements on site.
With an integrated LIDAR-based obstacle avoidance system, the Kite 75 navigates safely through complex environments. The inclusion of multiple payloads, both front and bottom, opens up a wide range of possible applications. From simple photo cameras such as the Sony Alpha series to advanced camera payloads with day and night vision and intelligent features, the Kite 75 offers flexible customization options to meet a wide range of requirements.
In addition, the Kite 75 can serve as a flying antenna by integrating 4G or 5G routers for improved communication and data transmission. Bidirectional data transmission via Ethernet over the tether cable enables control, payload operation, and video transmission without a radio link.
Overall, the Kite 75 industrial drone offers a comprehensive solution for precise monitoring and inspection of industrial plants and infrastructures. Its ability to easily adapt to customer requirements makes it an extremely versatile and effective tool in various application scenarios.
We would be happy to demonstrate the Kite75 to you. Please contact us!
